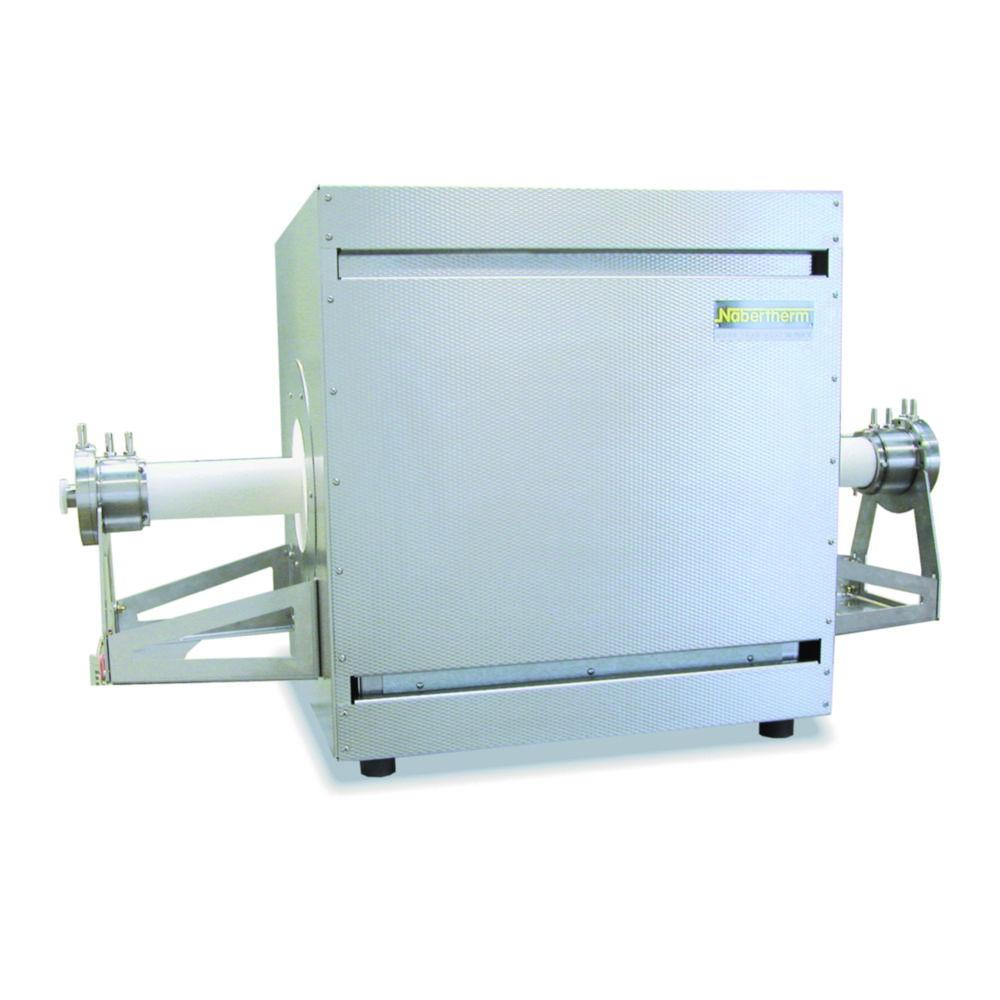

Representative image only
Nabertherm High Temperature Tube Furnace RHTV 50/150/16/P570 Tmax 1600°C, Including Working Tube C 799 and 2 Fibre Plugs 40x380 mm Iø x L
Sold by: Analisa Resources
Available Soon
Part #: 9.764 563Manufacturer #: RV152V62AN
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Nabertherm High Temperature Tube Furnace RHTV 50/150/16/P570 Tmax 1600°C, Including Working Tube C 799 and 2 Fibre Plugs 40x380 mm Iø x L is designed for horizontal or vertical laboratory heat treatment processes with 1600°C and 40x380 mm. This Nabertherm tube furnace supports reliable laboratory and scientific workflows.
Key Features:
- Brand: Nabertherm
- Product Type: Tube Furnace
- Temperature Range: 1600°C
- Dimensions: 40x380 mm
- Design: The high-temperature tube furnaces are available in either horizontal (type RHTH) or vertical (type RHTV) designs
- Application: Horizontal or vertical laboratory heat treatment processes
This Nabertherm tube furnace is suitable for laboratories requiring consistent results, accurate measurements, and trusted laboratory operation.
Product Specifications
- HS Code #85141980
- Depth650 mm
- Dimensions (WxDxH)500 x 650 x 510 mm
- Power supply frequency50/60 Hz
- Height510 mm
- Length tube380 mm
- Length tube heated150 mm
- Max. ext. tube Ø50 mm
- Max. temperature1600 °C
- Max. voltage480 V
- Min. voltage380 V
- Power supply380 ... 480 V, 50/60 Hz
- Rated capacity5400 W
- TypeRHTV 50/150/16/P570
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight70 kg
- Width500 mm
