KGW Isotherm Dewar Vessel, 1500 ml, 90 x 245 mm Inner Height, Blue-Coated Metal Cover, DURAN Glass
Product overview

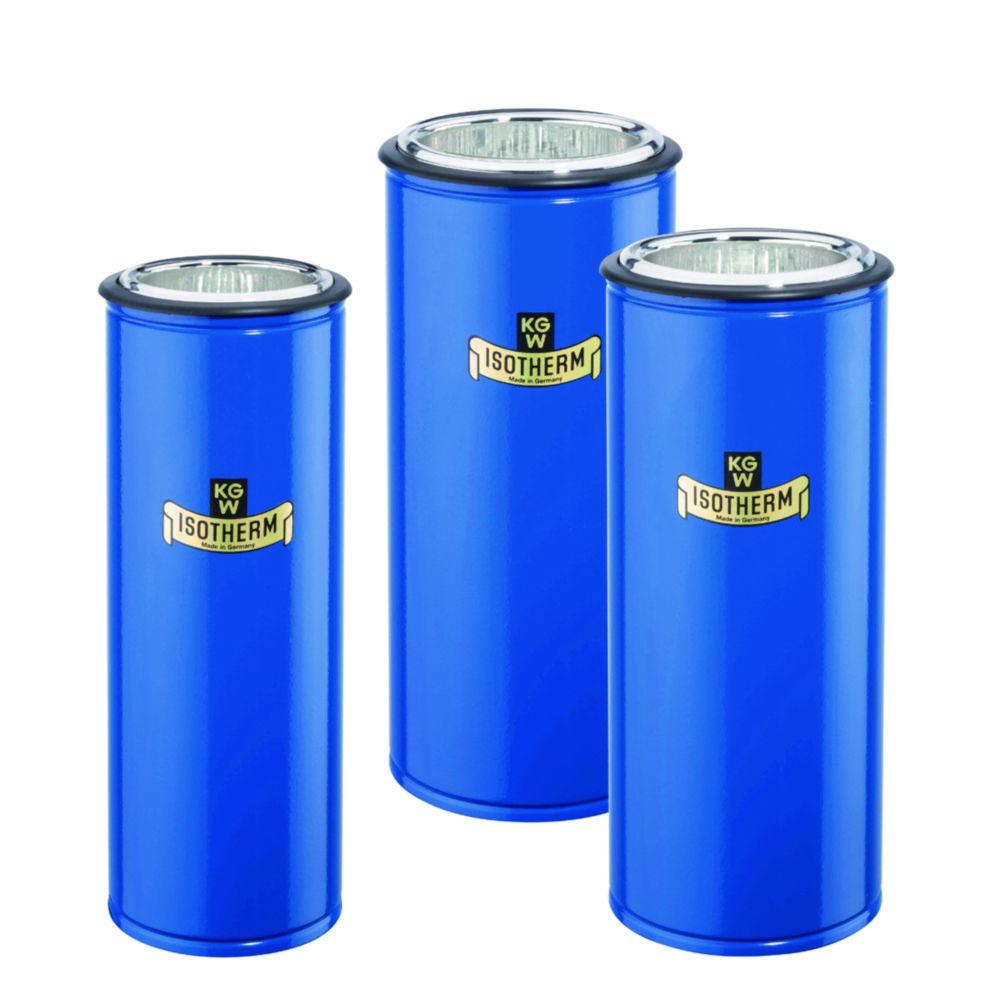

The KGW Isotherm Dewar Vessel is a high-quality cylindrical cryogenic vessel with a 1500 ml capacity, constructed from DURAN glass in accordance with DIN EN ISO 16496. Supplied with a blue-coated protective metal casing, it is designed for the safe storage and handling of cryogenic liquids and temperature-sensitive samples in laboratory environments. Additional configurations without casing, unsilvered, or silvered with opposite viewing strips are available on request. Stoppers are to be ordered separately.
Key Features:
- Brand: KGW Isotherm
- Product Type: Dewar Vessel
- Capacity: 1500 ml
- Dimensions: 90 x 245 mm inner height
- Shape: Cylindrical
- Material: DURAN glass
- Protective Casing: Blue-coated metal cover
- Standard: DIN EN ISO 16496
- Options: Available without casing, unsilvered, or silvered with opposite viewing strips
- Stoppers: To be ordered separately
- Application: Cryogenic liquid storage, temperature-sensitive sample handling
The KGW Isotherm DURAN Glass Dewar Vessel combines robust construction with reliable thermal insulation, meeting DIN EN ISO 16496 standards for safe and effective cryogenic storage. Its blue-coated metal protective casing offers added durability and impact resistance, making it a dependable choice for laboratory cryogenic workflows requiring consistent temperature control.
Product Specifications
- HS Code #70172000
- Dimensions (WxH)90 x 245 mm
- Height int.245 mm
- Int. Ø90 mm
- Material containerMetal
- Nominal capacity1500 ml
- Type12 C
- UNSPSC41103033
- With lidNo
Downloads
- Cylindrical Dewar Flask KGW BrochureDownload
Products related to this item (23)
product | Mfr # | Part # | Product name | Type | Nominal capacity | Price | Availability | |
10211 | 9.032 021 | KGW Schieder 1000 mL Dewar Vessel with Blue-Coated Metal Cover | 9 C | 1000 ml | 1,160.50 | In stock | ||
10215 | 9.032 025 | KGW Isotherm Dewar Vessel, 2000 ml, Cylindrical, 90 x 340 mm Inner Height, Blue-Coated Metal Cover, DURAN Glass | 13 C | 2000 ml | 1,485.00 | In stock | ||
1021 | 9.032 011 | KGW Schieder Dewar Vessel Aluminium Jacket & Cap, 100 ml, 40 x 90 mm Inner Height | 00 C | 100 ml | 709.50 | |||
1022 | 9.032 012 | KGW Schieder Dewar Vessel Aluminium Jacket Cap 200 ml 40 x 170 mm Inner Height | 0 C | 200 ml | 814.00 | |||
1023 | 9.032 013 | KGW Schieder Dewar Vessels, Cap. 300 ml 47 x 190 mm Inner Height, Blue-Coated Metal Cover | 1 C | 300 ml | 1,056.00 | |||
1025 | 9.032 015 | KGW Schieder Dewar Vessels, Cap. 500 ml 57 x 210 mm Inner Height, Blue-Coated Metal Cover | 3 C | 500 ml | 880.00 | |||
1028 | 9.032 018 | KGW Schieder Dewar Vessels, Cap. 800 ml 67 x 240 mm Inner Height, Blue-Coated Metal Cover | 6 C | 800 ml | 979.00 | |||
10212 | 9.032 022 | KGW Schieder Dewar Vessels, Aluminium Jacket, Cap, 1500 ml, 77 x 345 mm Inner Height | 10 C | 1500 ml | 1,259.50 | |||
10218 | 9.032 028 | KGW Schieder Dewar Vessels, Cap. 2000 ml 100 x 290 mm Inner Height, Blue-Coated Metal Cover | 16 C | 2000 ml | 1,452.00 | |||
10220 | 9.032 030 | KGW Schieder Dewar Vessels 2500ml, Blue-Coated Metal Cover, 10 x 290 mm Inner Height | 18 C | 2500 ml | 1,749.00 | |||
10223 | 9.032 033 | KGW Schieder Dewar Vessels 4000ml, Blue-Coated Metal Cover, 138 x 160 mm Inner Height | S 21 C | 4000 ml | 2,469.50 | |||
10221 | 9.032 031 | KGW Schieder Dewar Flasks 5000ml, Cylindrical Blue Powder-Coated Alu, 600x110mm | 19 C | 5000 ml | 3,800.50 | |||
1026 | 9.032 016 | KGW Schieder Dewar Flasks 750ml, Cylindrical Blue Powder-Coated Alu, 310x57mm | 4 C | 750 ml | 924.00 | |||
1024 | 9.032 014 | KGW Schieder Dewar Flasks 450ml, Cylindrical Blue Powder-Coated Alu, 270x47mm | 2 C | 450 ml | 943.80 | |||
10222 | 9.032 032 | KGW Schieder Dewar Flasks 3000ml, Cylindrical Blue Powder-Coated Alu, 230x138mm | 20 C | 3000 ml | 1,984.40 | |||
1029 | 9.032 019 | KGW Schieder Dewar Vessel Aluminium Jacket with Cap – 1200 mL, 67 × 350 mm Inner Height | 7 C | 1200 ml | 1,149.50 | |||
1027 | 9.032 017 | KGW Schieder Dewar Flasks 1250ml, Cylindrical Blue Powder-Coated Alu, 500x57mm | 5 C | 1250 ml | 2,831.40 | |||
10217 | 9.032 027 | KGW Schieder Dewar Vessels, Aluminium Jacket, Cap. 1500 ml 100 x 240 mm Inner Height | 15 C | 1500 ml | 1,579.05 | |||
10219 | 9.032 029 | KGW Schieder Dewar Flasks 4000ml Cylindrical Blue Powder-Coated Alu 600x100mm | 17 C | 4000 ml | 3,569.50 | |||
10224 | 9.032 034 | KGW Schieder Dewar Flasks 8000ml, Cylindrical Blue Powder-Coated Aluminium, 600x138mm | S 22 C | 8000 ml | 3,944.60 | |||
10213 | 9.032 023 | KGW Schieder Dewar Flask 2100ml Cylindrical Blue Powder-Coated Aluminium 500×77mm | 11 C | 2100 ml | 3,031.05 | |||
10216 | 9.032 026 | KGW Schieder Dewar Flask 3200ml, Cylindrical Blue Powder-Coated Aluminum, 600x90mm | 14 C | 3200 ml | 3,563.45 | |||
10210 | 9.032 020 | KGW Schieder Dewar Flasks 1700ml, Cylindrical Blue Powder-Coated Alu, 500x67mm | 8 C | 1700 ml | 2,579.50 |
