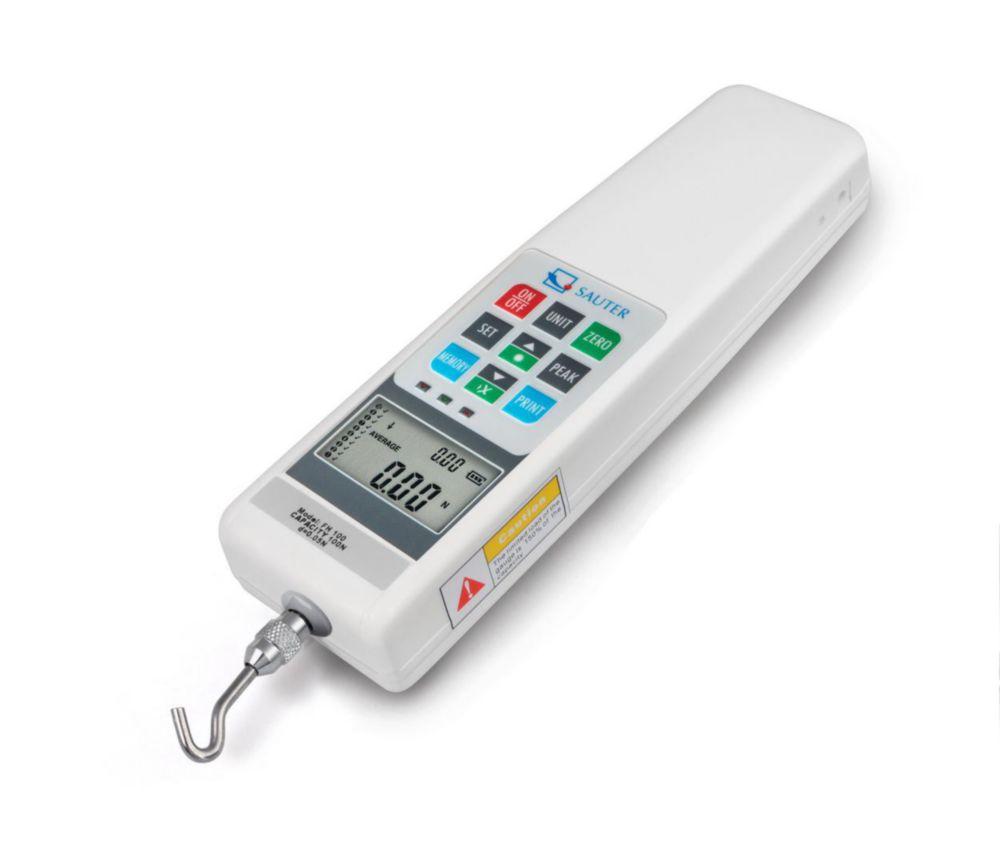

Kern Digital Power Measuring Unit FH 500 – Max. 500 N / 0.1 N for Pull and Pressure Measurements

The Kern Digital Power Measuring Unit FH 500 is a high-precision force measurement device designed for accurate pull and pressure force measurements. With a maximum capacity of 500 N and an impressive resolution of 0.1 N, this digital power measuring unit is ideal for industrial and laboratory environments where precision and reliability are paramount. It provides accurate readings for testing, calibration, and quality assurance processes.

Key Features:

• Brand: Kern
• Max. Load: 500 N
• Resolution: 0.1 N
• Application: Suitable for pull and pressure force measurements
• Display: Digital display for easy and clear data reading; turnable with backlight
• Internal Sensor: Digital force gauge with integrated measuring cell
• Data Interface: RS-232 for data transfer
• Units: Selectable measuring units: N, lb, kg
• Measurement Modes: Peak-Hold function to capture peaks or Track function for continuous measurement (approx. 10 s)
• Limit Settings: Programmable Max./Min. limits for pull and push with acoustic and optical signals for efficient testing
• Auto Power-Off: Power-saving feature
• Memory: Internal memory for up to 10 measurements
• Statistics: Mini Statistics Kit calculates average, min., max., and count from stored results
• Compatibility: Can be mounted on all SAUTER test stands
• Precision: High-accuracy performance for testing and calibration applications

Scope of Supply:

• Force gauge
• Carrying case

The Kern FH 500 is built to meet the needs of demanding force measurement tasks, offering durability and precision for industrial, laboratory, and scientific use.
