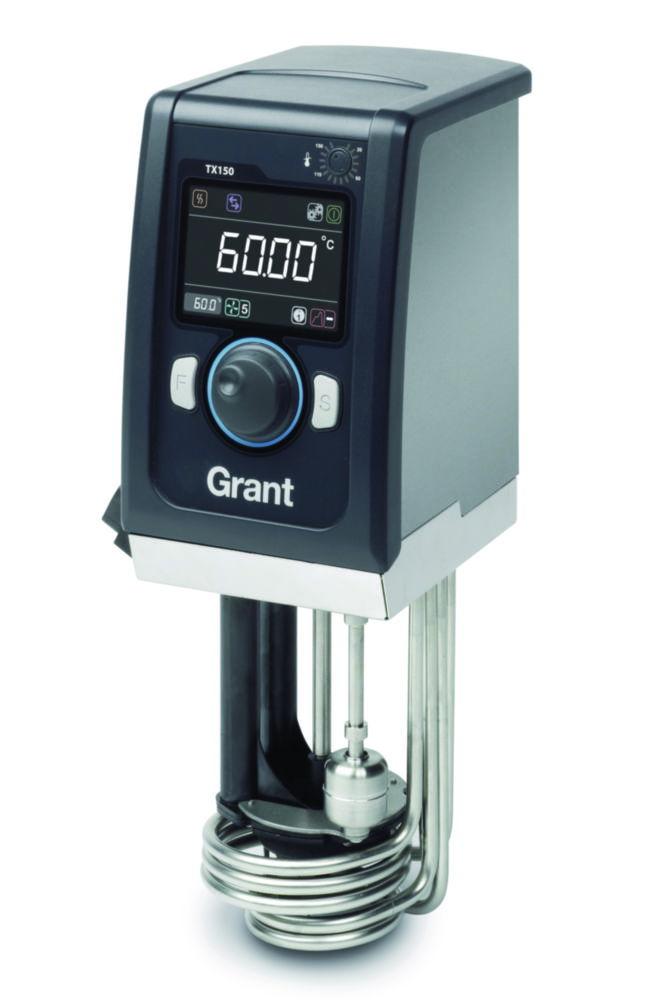

Representative image only

Grant Thermostate TX 150 Programmable, RT +5 °C…150 °C, Without Clamp, With Pump

Sold by: Analisa Resources
Available Soon
Part #: 9.699 632Manufacturer #: TX150
Estimated shipping time:Contact us via live chat or via contact us page

RM 11,209.00

Product overview

The Grant Thermostate TX 150 Programmable is an advanced immersion circulator designed for precise laboratory temperature control. With an operating range from +5 °C to +150 °C and an integrated pump for external circulation, it delivers exceptional stability and flexibility. Combine it with a plastic or stainless steel tank, or use independently with an accessory T-clamp for versatile setup options. The advanced heating circulator features a modern, icon-driven interface and a large full-colour display for intuitive operation.

Key Features:

  • Brand: Grant
  • Temperature Range: RT +5 °C to +150 °C
  • Pump Included: Yes, integrated pump for external fluid circulation
  • Clamp: Without clamp — suitable for use with compatible tank or T-clamp accessory
  • Display: Large, bright full-colour display
  • Alarm: Visual and audible alarm
  • Timer: 1 min to 99 h 59 min
  • Calibration: 5-point recalibration
  • Programmability: Remote via PC/laptop with 1 program/30 segments
  • External Probe: Socket for external temperature probe
  • Interfaces: USB and RS-232 interface, relay output for external device control

Note: Models with clamps are available on request.

For use at or below room temperature, additional flow coolers C1G or C2G are required. The TX 150 ensures outstanding temperature stability and uniformity, making it ideal for demanding laboratory or industrial applications.

Product Specifications
  • HS Code #84198998
  • Depth172 mm
  • Dimensions (WxDxH)141 x 172 x 342 mm
  • Power supply frequency50/60 Hz
  • Heating capacity1840 W
  • Height342 mm
  • Max. delivery pressure0.31 bar
  • Max. temperature150 °C
  • Max. voltage230 V
  • Min. temperature+5 °C
  • Power supply230 V, 50/60 Hz
  • ProgrammableYes
  • Temperature stability±0,01 °C (70 °C)
  • TemperatureRT
  • TemperatureRT+5 ... 150 °C
  • TypeTX150
  • Type of auxiliary energyMains connection
  • Type of displayQVGA TFT
  • Weight2.6 kg
  • Width141 mm
  • With timerYes
