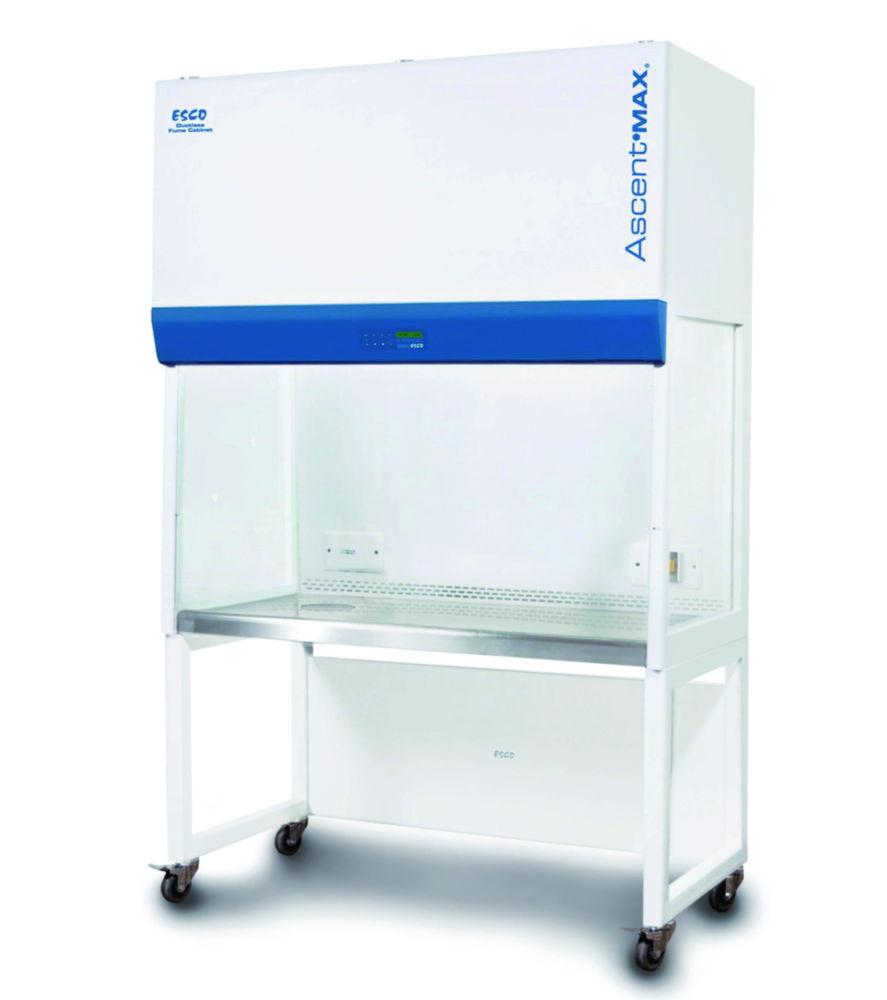

Representative image only
ESCO Ascent Max Laboratory Fume Hood ADC-3C1 Air Circulation, 0.9m, 2 Activated Carbon Filters
Sold by: Analisa Resources
Available Soon
Part #: 4.658 987Manufacturer #: 2040033
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The ESCO Ascent Max Laboratory Fume Hood ADC-3C1 is a compact, energy-efficient ductless fume hood designed for laboratories requiring effective air filtration without the need for external ducting. With a width of 0.9 meters and equipped with two activated carbon filters, it ensures optimal removal of toxic chemical fumes, recycling clean air back into the laboratory environment.
Key Features:
- Brand: ESCO
- Model: ADC-3C1
- Air Circulation: Ductless system with dual activated carbon filters
- Dimensions: 0.9m width; External: 1035 x 736 x 1455 mm; Internal: 965 x 596 x 765 mm
- Airflow: Average inflow air velocity of 0.4 m/s
- Construction: Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder coating; tempered glass side panels; stainless steel worktop
- Additional Features: Sentinel Microprocessor with LCD display, air velocity alarm, 24-hour clock, fluorescent lighting, easy filter change mechanism
- Compliance: Independently tested and complies with AFNOR NFX 15-211 standard
This fume hood is ideal for laboratories seeking a reliable, ductless solution for chemical fume filtration, combining safety, efficiency, and ease of use.
Product Specifications
- HS Code #84146000
- Amperage3.5 A
- Depth int.596 mm
- Ext. dim. (WxDxH)1,035 x 736 x 1,455 mm
- Ext. depth736 mm
- Ext. height1455 mm
- Ext. width1035 mm
- Power supply frequency50 Hz
- Height int.765 mm
- Int. Dim. (WxDxH)965 x 596 x 765 mm
- Int. width965 mm
- Max. voltage240 V·AC
- Min. voltage220 V·AC
- Power supply220 ... 240 V·AC, 50 Hz , 3.5 A
- Rated capacity236 W
- TypeADC-3C1
Downloads
- Esco Ascent Series Ductless Fume Hoods Data SheetDownload
Variant products
Products related to this item (11)
product | Mfr # | Part # | Product name | Type | Rated capacity | Price | Availability | |
2040018 | 4.658 982 | ESCO Ascent Max Laboratory Fume Hood ADC-2B1 Air Circulation, 0.6m | ADC-2B1 | 128 W | 39,490.00 | |||
2040039 | 4.658 992 | ESCO Ascent Max Laboratory Fume Hood ADC-3E1 Air Circulation, 0.9m, 1 Activated Carbon Filter + 1 HEPA Filter
| ADC-3E1 | 236 W | 47,410.00 | |||
2040057 | 4.658 996 | ESCO Ascent Max Laboratory Fume Hood ADC-4E1 Air Circulation, 1.2m, 1 Activated Carbon Filter (Not Included) + 1 HEPA Filter (Included)
| ADC-4E1 | 264 W | 47,410.00 | |||
2040060 | 4.658 985 | ESCO Ascent Max Laboratory Fume Hood ADC-5B1, 1.5m, Air Circulation, Activated Carbon Filter | ADC-5B1 | 300 W | Request for price | |||
2040024 | 4.658 983 | ESCO Ascent Max Laboratory Fume Hood ADC-3B1, 0.9m, Air Circulation, Activated Carbon Filter | ADC-3B1 | 236 W | 39,490.00 | |||
2040051 | 4.658 989 | ESCO Ascent Max Laboratory Fume Hood ADC-4C1, 1.2m, Air Circulation, Dual Activated Carbon Filters | ADC-4C1 | 264 W | 40,777.00 | |||
2040087 | 4.658 991 | ESCO Ascent Max Laboratory Fume Hood ADC-6C1, 1.8m, Air Circulation, Dual Activated Carbon Filters | ADC-6C1 | 339 W | 63,888.00 | |||
2040042 | 4.658 984 | ESCO Ascent Max Laboratory Fume Hood ADC-4B1, 1.2m, Air Circulation, Activated Carbon Filter | ADC-4B1 | 264 W | 39,490.00 | |||
2040069 | 4.658 990 | ESCO Ascent Max Laboratory Fume Hood ADC-5C1, 1.5m, Air Circulation, Dual Activated Carbon Filters | ADC-5C1 | 300 W | 44,726.00 | |||
2040078 | 4.658 986 | ESCO Ascent Max Laboratory Fume Hood ADC-6B1, 1.8m, Air Circulation, Activated Carbon Filter | ADC-6B1 | 339 W | 43,307.00 | |||
2040075 | 4.658 997 | ESCO Ascent Max Laboratory Fume Hood ADC-5E1, 1.5m, Air Circulation, 1 Activated Carbon Filter + 1 HEPA Filter | ADC-5E1 | 300 W | 53,328.00 |
